Other DR-600

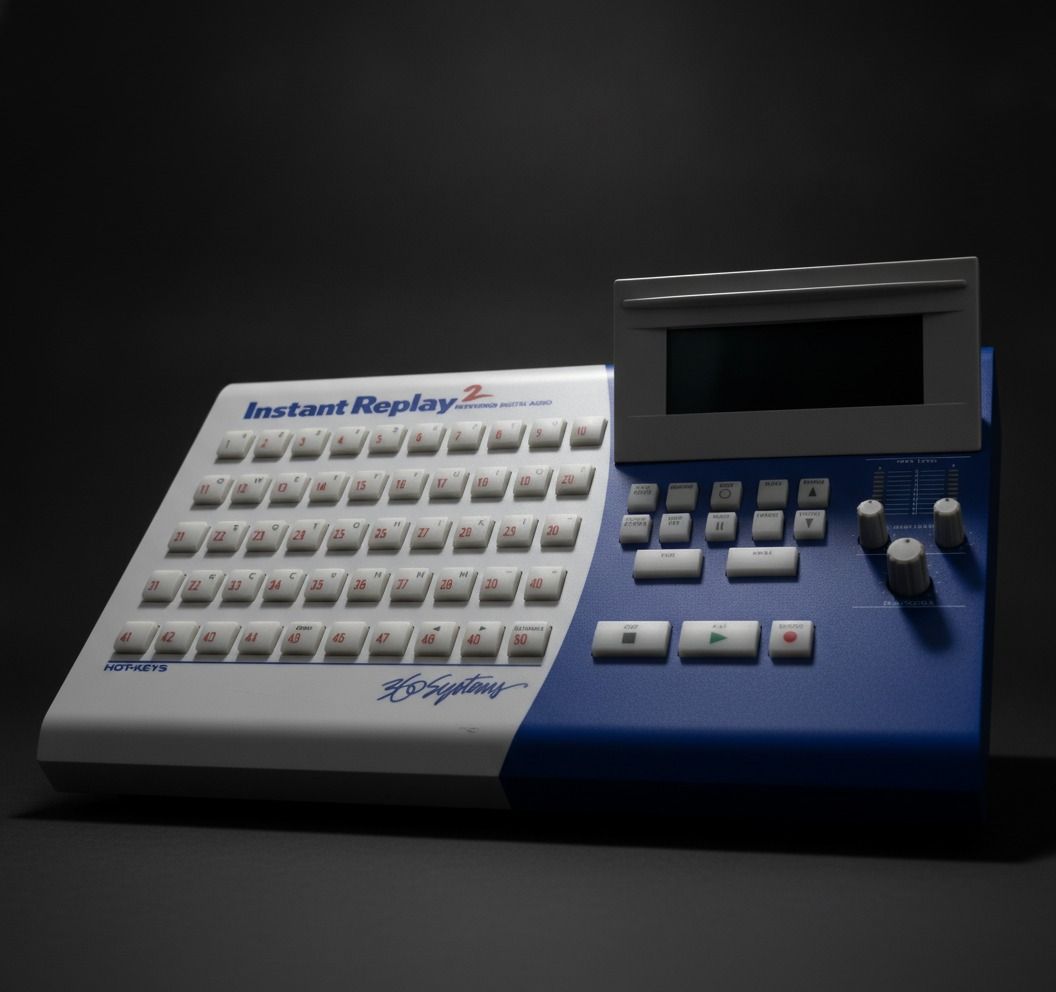

The 360 Systems Instant Replay 2, model DR-600, is a networked digital audio playback and recording device designed for instant cueing and playback, commonly used in broadcast and live sound environments. The front panel features 50 customizable 'HOT-KEYS' (numbered 1-50 with corresponding alphanumeric labels Q-P, A-L, Z-M) for rapid access to audio clips. A large, multi-segment LCD screen displays operational information, likely including audio levels or waveforms, with dedicated 'PEAK LEVEL' meters. The right side of the front panel includes control buttons for SETUP, PREVIEW, COPY, EDIT, MENU, HOME, A, ABORT, CANCEL, B, UNDO, ENTER, SAVE, EXIT, SHIFT, and a 'P' button, along with directional arrow keys. Transport controls include STOP, PLAY, and RECORD. Audio level adjustments are provided by two 'INPUT LEVEL' knobs and one 'HEADPHONE' level knob, accompanied by a front-panel headphone jack. The rear panel offers extensive connectivity: - Balanced Analog Inputs (2x XLR female, L/R) - Balanced Analog Outputs (2x XLR male, L/R) - Unbalanced Analog I/O (4x RCA, L/R In/Out) - AES/EBU Digital I/O (XLR In/Out) - S/PDIF Digital I/O (RCA In/Out) - GPI (General Purpose Interface) via a D-sub connector (appears to be 15-pin) - LAN (RJ45 Ethernet port) for networked operation - RS-232 serial port (DB9) - PS/2 Keyboard/Mouse ports (green and purple) Power is supplied via an IEC C14 inlet with a toggle power switch, supporting 115-230VAC, 50-60Hz, 1.2A MAX. The unit is UL Listed (E1498YJ) and CE certified, and proudly states 'Made in USA'. The physical condition is excellent, showing minimal signs of wear or cosmetic imperfections.
